Sensors – Silicon
| Pressure range | 0,15 .. 15000 psi (0,01 .. 1000 bar) |
|---|---|
| Temperature range | -40 .. +150 °C |
| Pressure type | Absolute / Relative / Differential |
| Technology | Silicon “Sentium®” |
| Media | Air, gas (Exhaust,..), Liquids (oil, gazoline, diesel, Urea,..) |
| Pressure side | Top side / Back-side |

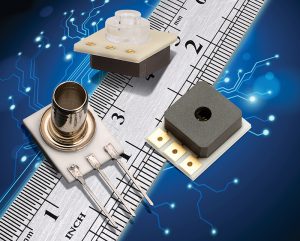

Medium Pressure Sensors
| Merit Sensor Series | Type | Sentium® Technology Silicon Sensor | Uncompensated Packages | Passive compensated packages | Full Compensated packages |
|---|---|---|---|---|---|
| 3000,5000,7000, L, AP301,HM, K |  | ||||
| Lpup, SMD, MS, PMD 10mbar..30 bar | | | |||
| BP, AP | | | | ||
| TR 1 ..20 bar | | | |

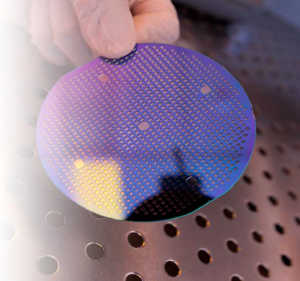

Sentium Technology
| Best-in-class operating temperature range | -40°C to 150°C |
|---|---|
| Pressure range from vacuum | up to 15,000 psi |
| Short-term stability | <20 μV/V at 150°C for 168 hours |
| Long-term stability | <20 μV/V over 120 days at 85°C for die >30psi <60 μV/V over 120 days at 85°C for die <30psi |
| Combined linearity and hysteresis | <.5% over the entire temperature range |
| Automotive reliability testing | Temp Cycling 1000 cycles (-40°C to 150°C); no failures Pressure Cycling 1,000,000 cycles; no failures |
